R29 999,00

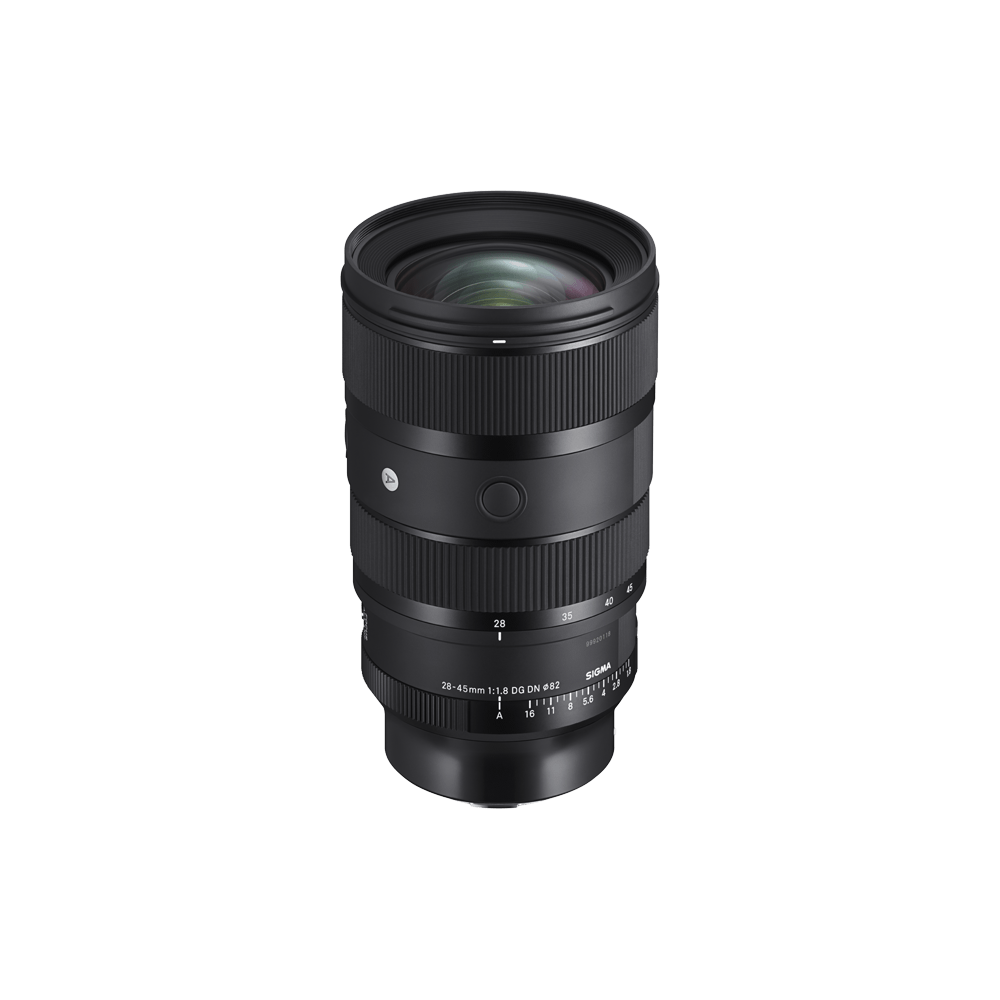

28-45mm F1.8 DG DN

Choose a mount to see availability

R29 999,00

  • The world’s first full-frame, F1.8 maximum aperture zoom lens
  • Excellent optical performance comparable to that of a prime lens
  • High-speed AF speed and innovative features
Camera Type
Mirrorless
Corresponding Mount
L-Mount,Sony E-mount
Sensor Format
Full-frame [DG]
Lens Construction
18 elements in 15 groups (5 SLD, 3 aspherical elements)
Angle of View
75.4-51.3°
Number of Diaphragm Blades
11 (rounded diaphragm)
Minimum Aperture
F16
Minimum Focusing Distance
30cm / 11.9in.
Maximum Magnification Ratio
1:4 at f=45mm
Filter Size
φ82mm
Dimensions (Diameter × Length)
L-Mount:φ87.8mm x 151.4mm / φ3.5in. x 6.0in.
Sony E-mount:φ87.8mm x 153.4mm / φ3.5in. x 6.0in.
Weight
L-Mount:960g / 33.9oz.
Sony E-mount:950g / 33.5oz.
Edition Number

A024

The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

Supplied Accessories
CASE
LENS HOOD LH878-06 FRONT CAP LCF-82 III
REAR CAP LCR II
Mount / Product Barcode
L-Mount:00-85126-61269-6 Sony E-mount:00-85126-61265-8
Camera Compatibility
The world's first* full-frame, F1.8 maximum aperture zoom lens
Sigma has successfully developed the world's first full-frame zoom lens with a maximum aperture of F1.8. The Sigma 28-45mm F1.8 DG DN | Art incorporates an inner zoom mechanism, a minimum focusing distance of 30cm across the entire zoom range, and a filter size of φ82mm. Despite its advanced feature-set, the lens weighs less than 1kg, making it a portable and versatile option for either hand-held shooting or a gimbal setup. * As of June 2024 by Sigma
Constant maximum aperture of F1.8
Once a privilege reserved only for prime lenses, the maximum F1.8 aperture allows full-frame camera users to expose hand-held in low light and produce beautiful bokeh, while enjoying the flexibility of a zoom. This unique optical achievement has been created through Sigma's accumulated optical design experience and advanced production technology at the company’s sole production base in Aizu, Japan.
Practical and stable inner zoom
Practical and stable inner zoom Employing an inner zoom mechanism, the overall length of the lens remains constant when the focal length or focus distance changes. This means the lens is easy to use when shooting hand-held, highly stable when mounted on a tripod or gimbal, and more resistant to dust and water contamination.
Consistent close focus
The minimum focusing distance is a constant 30cm across the entire zoom range, with a maximum magnification ratio of 1:4 at the telephoto end, providing excellent close-up shooting capabilities. As well as offering precise focus in confined spaces, the lens can therefore be used close to a subject without affecting sharpness when using the zoom.
Premium build at a lighter weight
By rights, such a fast zoom should be big and heavy, but while the lens’s rigidity and durability protect its sophisticated optical design, this is achieved at a weight of less than 1kg. What’s more, this reliable photographic tool uses a versatile filter size of φ82mm, meaning no compromise in portability or convenience.
Excellent optical performance comparable to that of a prime lens
With each optical aberration meticulously corrected throughout the zoom range, the Sigma 28-45mm F1.8 DG DN | Art rivals prime lenses for clarity and definition. Thanks to its advanced coatings, the lens produces clear images, even in backlit environments, while focus breathing is thoroughly suppressed, bringing expressive power to film-makers and photographers.
The pinnacle of optical quality in a zoom
Through the effective arrangement of 5 SLD elements and 3 aspherical elements, aberrations are rigorously corrected. Axial chromatic aberration, which is particularly noticeable with large-aperture lenses, has been thoroughly suppressed, and the lens delivers clear images with minimal coloration, from sharply focused details to large, smooth bokeh.
Suppression of focus breathing
When using regular lenses, the angle-of-view can change as focus moves from near to far, affecting precise composition. With the Sigma 28-45mm F1.8 DG DN | Art this focus breathing is suppressed, enabling natural focus pulls when shooting video.
Minimal flare and ghosting
Flare and ghosting, which reduce image quality, have been largely eliminated using advanced simulation technology, ensuring the lens renders rich, high-contrast results in all conditions. In addition, in order to keep flare and ghosting to a minimum, the lens uses Sigma’s Nano Porous Coating and Super Multi-Layer Coating, producing superior resistance to backlighting and enabling clear, saturated images in all lighting conditions.
High-speed AF speed and innovative features
The Sigma 28-45mm F1.8 DG DN | Art delivers a range of professional features as impressive as its outstanding optical performance. With high-speed and adaptable AF, a durable weather-resistant structure, a de-clickable aperture ring, smooth manual focusing and on-barrel AFL buttons, all features combine to create a versatile photographic tool capable of responding to any situation.
Faster focus with a linear motor
  • The lens’s AF mechanism uses an HLA (High-response Linear Actuator) to combine accelerated focusing speed with exquisite precision. And because the motor is near-silent it allows video recording without noise.
Lens construction
FLD glass
Aspherical lens
MTF CHART
Diffraction MTF
Geometrical MTF
Geometrical MTF
MTF CHART GUIDE
: The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1). The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is. *The MTF chart depicts the result at the wide-open aperture. *For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.) *The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Inner focus system +
Inner Zoom +
HLA (High-response Linear Actuator) +
Compatible with Lens Aberration Correction +
Nano Porous Coating +
Super Multi-Layer Coating +
Water- and oil-repellent coating +
Aperture ring +
Aperture ring click switch +
Aperture ring lock switch +
AFL button +
Focus Mode Switch +
Linear focus / Non-linear focus (for L-Mount only) +
Dust- and splash-resistant structure +
Rounded diaphragm
Compatible with high-speed autofocus
Supports DMF and AF+MF
Compatible with AF assist (for Sony E-mount only)

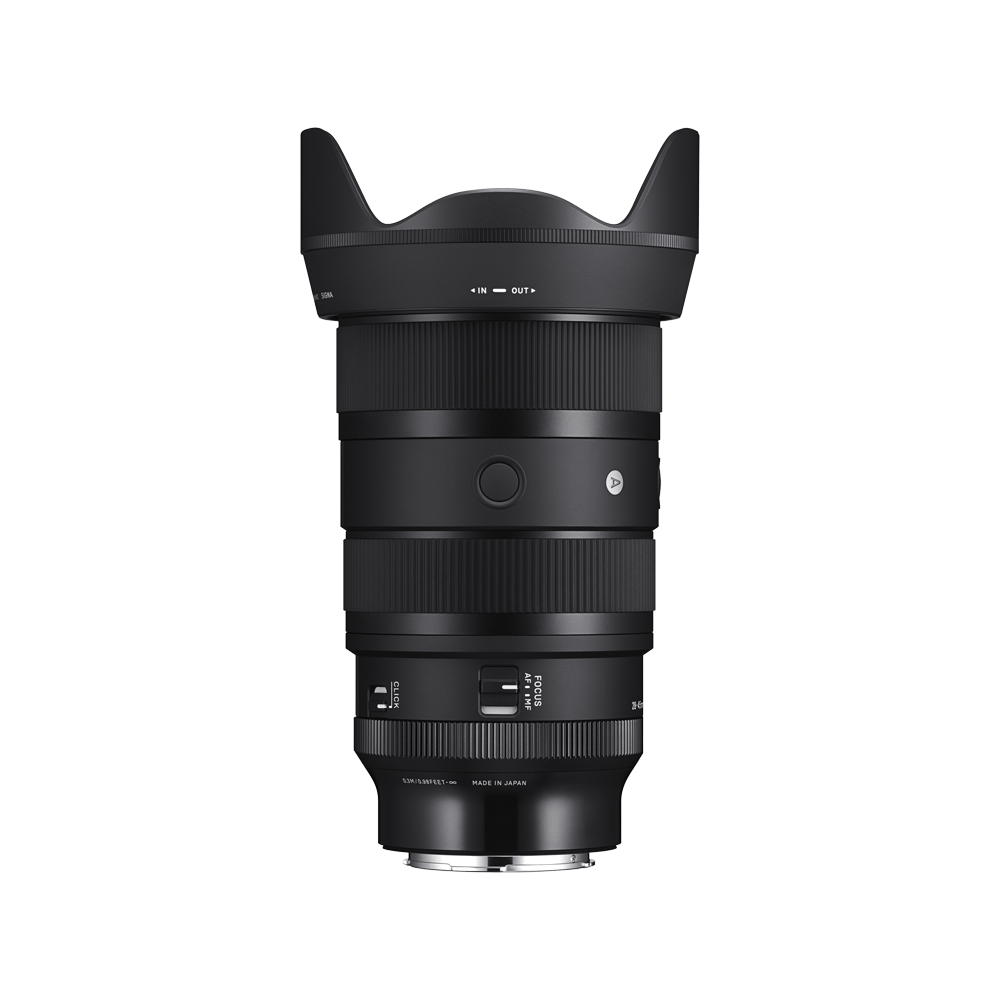

Petal-type hood with lock LH878-06
Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)
Designed to minimize flare and ghosting
Every single lens undergoes Sigma’s proprietary MTF measuring system
High-precision, durable brass bayonet mount
Mount Conversion Service available
“Made in Aizu, Japan” craftsmanship
Camera
α7R IV
Shutter Speed
1/1000s
Lens F Number
F8
ISO
200
Focal Length
16mm
Photographer
Liam Doran
DOWNLOAD
Camera
α7R IV
Shutter Speed
1/100s
Lens F Number
F16
ISO
200
Focal Length
19.2mm
Photographer
Liam Doran
DOWNLOAD
Camera
SIGMA fp L
Shutter Speed
1/400s
Lens F Number
F4.5
ISO
100
Focal Length
16.6mm
Photographer
Martina Abreu
DOWNLOAD
Camera
SIGMA fp L
Shutter Speed
1/1250s
Lens F Number
F5.6
ISO
100
Focal Length
28mm
Photographer
Aya Iwasaki
DOWNLOAD
